Description

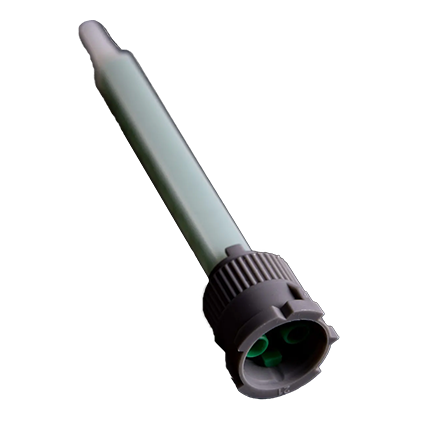

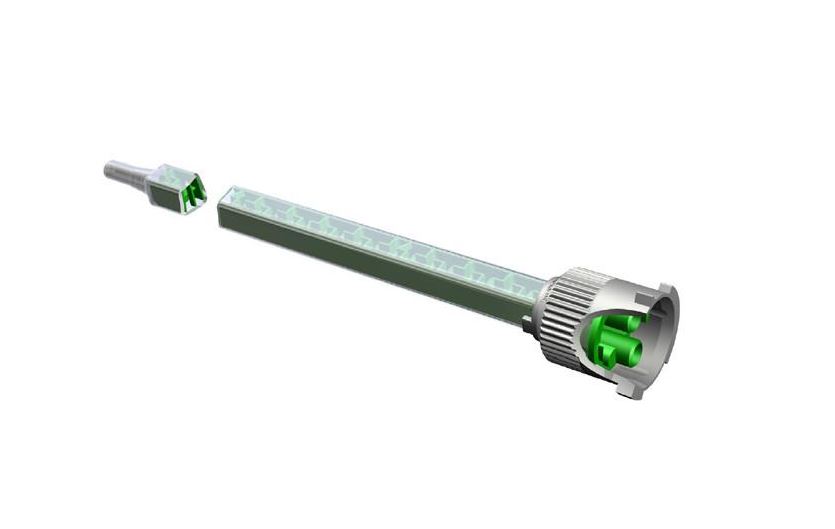

The Sulzer Medmix MBQ 05-16L static mix nozzle is a Quadro mixer with 16 mixing elements with a 5.3 mm element diameter and a Luer Lock Tip. The Luer Lock tip on the MBQ 05-16L allows users to add needles and tips for precision or specialty dispensing. Quadro mixers give superior mixing in a smaller footprint so you can get closer to the materials you are bonding.
Works With
- Sulzer Mixpac S System and B System 50 ml Cartridges
Specs
- Twist & Lock Connection
- Luer Lock Tip
- 1:1 & 2:1 Dispensing
- Works with 50 ml Cartridges
- Same nozzle as 7100104991 – 3M™ Scotch-Weld™ EPX Mixing Nozzle, Square Green, 1:1 and 2:1, 48.5mL and 50mL
| SKU | Mfg | Mfg SKU | System | Series | Ratio | Helical/Quadro | Description | Elements | Ø ID (mm) |
L (mm) |
Vol. (ml) |
| CON-MBQ-05-16L | Sulzer Medmix | MBQ 05-16L | B-System | MBQ | 1:1/2:1 | Quadro | Mixer quadro, 1:1/2:1 dust grey, green elements, luer lock tip | 16 | 5.3 | 90.7 | 1.88 |
| CON-MBQ-05-24L | Sulzer Medmix | MBQ 05-24L | B-System | MBQ | 1:1/2:1 | Quadro | Mixer quadro, 1:1/2:1 dust grey, green elements, luer lock tip | 24 | 5.3 | 122.0 | 2.60 |
