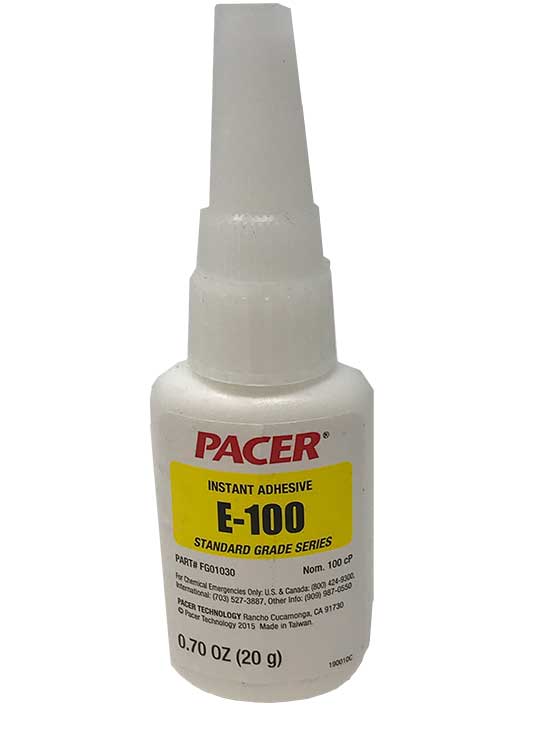

Pacer E-100 Medium Viscosity Cyanoacrylate Adhesive – 20 Gram (0.70 oz) Bottle

This 20 gram (0.70 oz) bottle of Pacer E-100 is the bench and repair size of Pacer’s medium viscosity ethyl cyanoacrylate, 80 to 120 cP with .005 in gap capability. It’s the size to buy when the adhesive gets used in drops rather than by the ounce: rework cells, service and repair work, prototype and first-article builds, or a production line that consumes a bottle over weeks instead of days. It’s also the stocked size in E-100, so it ships without a lead time. The bottle dispenses directly, no gun and no mixer.

Package Details

Full physical properties, cured state data, tensile shear numbers by substrate, and the viscosity selector for the whole series are on the main Pacer E-100 product page, or in the Pacer E Series technical data sheet (PDF).

Choosing the 20 Gram Over the 1 lb

E-100 comes in two sizes and the decision is about consumption rate and lead time, not cost per gram.

• The 20 gram is a working bottle. It goes to the bench, the tech uses it, it goes back in the drawer.
• The 20 gram is stocked. The 1 lb is a special order with a 10 to 15 day lead time, so if you need material this week, this is the size.
• The 1 lb holds 453 g, about 23 times as much, and it functions as a bulk container that gets drawn from rather than carried around.
• Cyanoacrylate cure is driven by moisture, and humidity in the headspace of a partly used bottle works against you over time. Pacer’s one year shelf life is stated for unopened material, so the size that finishes before it degrades is the size that costs you least.
• If you go through a 20 gram in under a week, you’re buying the wrong size and the 1 lb is the move. Plan the lead time, or call us about a standing order.
• If a 20 gram lasts you a month or more, stay here. Smaller bottles also let you stock two or three viscosities without committing to bulk on any of them.
• Need something smaller? E-5 is the only grade in the current E Series offered in a 5 gram bottle, though it’s a water-thin wicking grade rather than a medium viscosity one.

Performance in Production

• Dispenses straight from the bottle. No gun, no static mixer, no mixing station, so a bond can happen anywhere a tech can stand.
• One free-falling drop covers about one square inch of bond area, so 20 grams goes further than the size suggests on small parts and detail work.
• .005 in gap capability is the most forgiving of the thin and medium grades, which makes this the sensible bottle to keep on a bench that sees a mix of parts.
• At 80 to 120 cP this flows. It will run on a vertical or overhead face before it sets, so hold the part flat or clamp it. If your repairs are usually overhead or on a wall, E-1500 is the grade you want.
• Fixture in 1 to 5 minutes and 80% of strength in 15 to 30 minutes means a repair goes back into service the same shift.
• Impact strength is 3 to 5 ft-lbs, the low end of the series. If the repaired part gets handled hard afterward, E-40 more than doubles that at 7 to 10.
• Small bottle means less material at risk when a job gets cancelled, a substrate changes, or the joint design turns out to need a different viscosity.
• Keep the tip clean and the cap on. A CA bottle that clogs is almost always a bottle that sat open, not a bad bottle.

Common Applications

• Rework and repair of molded plastic parts
• Maintenance and service bonding on plastic, rubber, metal, and ceramic
• Prototype, first-article, and short-run assembly
• Rubber to metal bonding on small parts
• Benches that see a mix of parts and want one grade on the shelf
• Sample and qualification testing before committing to a bulk size
• Bench work calling out MIL-A-46050C Type II, Class 2 or A-A-3097 Type II, Class 2

Related Products

• Pacer E-100 Medium Viscosity Cyanoacrylate Adhesive (80-120 cP), full specs and both sizes
• Pacer E-5 Instant Adhesive (2-10 cP), water-thin wicking grade, also available in a 5 gram bottle
• Pacer E-40 Instant Adhesive (30-70 cP), strongest grade in the E Series, 4700 psi tensile and 7 to 10 ft-lbs impact
• Pacer E-1500 Instant Adhesive (1300-1700 cP), thickest grade in the E Series, holds position on vertical joints, .010 in gap
• Pacer Premium Acetone Accelerator, speeds full cure through larger gaps
• All cyanoacrylate instant adhesives

Frequently Asked Questions

How much is in a 20 gram bottle of Pacer E-100?

Net weight is 0.70 oz (20 g). Pacer’s guidance is that one free-falling drop covers roughly one square inch of bond area, so on small parts and detail work a 20 gram bottle covers a lot of joints. Pacer does not publish a drop count or a coverage figure per gram, so if you need to budget material for a production run, tell us the part and we’ll help you estimate off a sample.

What is the difference between the 20 gram and the 1 lb Pacer E-100?

Only the package and the availability. Same adhesive, same 80 to 120 cP, same specs, same spec compliance. The 1 lb holds 453 g against 20 g here, or 16 oz against 0.70 oz, about 23 times the material, but it’s a special order with a 10 to 15 day lead time while the 20 gram is stocked. Pick by how fast you go through it and how much notice you have.

Is there a smaller bottle than 20 gram?

Not in E-100. The 20 gram is the smallest package Pacer currently offers in this grade. E-5, the water-thin 2 to 10 cP grade, is available in a 5 gram bottle if you need a smaller quantity and a thin viscosity will work for your joint. That size is sold in case quantity.

Will Pacer E-100 run on a vertical surface?

Yes. At 80 to 120 cP E-100 is a flowing liquid and it will move on a vertical or overhead face before it cures. Medium viscosity in a cyanoacrylate means medium relative to water-thin, not non-sag. Hold the part flat, clamp it, mist with a Pacer accelerator to set the surface, or change grades: E-1500 at 1300 to 1700 cP holds position much better, and RX-50M Gel will not move at all.

Does Pacer E-100 need to be refrigerated?

Pacer recommends refrigerating unopened bottles at 40F (4C) for optimum results, then letting the adhesive come up to room temperature before opening. Opening a cold bottle draws condensation into the material. Once opened, store in a cool, dry location. It is not a requirement, it is what gets you the full stated shelf life.

How long does Pacer E-100 last once opened?

Pacer’s one year shelf life is stated for unopened material stored per the data sheet, and Pacer does not publish a separate figure for opened bottles. Practically, buy the size your shop finishes in a reasonable window and keep the cap on between uses. If you need a documented opened shelf life for a quality system, we can ask Pacer directly.

What is the part number for the 20 gram Pacer E-100?

Our SKU is PAC-FG01030. The Pacer part number is FG01030 and the UPC is 0 87093 00209 8. If you have an older Pacer purchase history, the same item shows as Pacer item number 11740015.

Questions on Fit

Questions on fit for your bonding process, or on which size makes sense for your volume? Call (800) 220-1966 or email [email protected].
